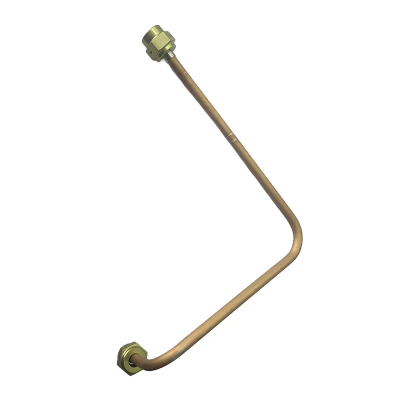

Small Pipe Fittings

Our Small Pipe Fittings are designed for very small pipes in tight spaces. Made from 6061-T6 or 2011 aluminum-the latter easy to cut-they are processed with high-precision CNC bending and flaring. Pipe diameters range from 6 mm to 60 mm, with a focus on the 6–16 mm range. Minimum bend radius is just 1.5× the pipe diameter (e.g., 9 mm for a 6 mm pipe), a capability beyond most large bending machines. Perfect for pneumatic valve island internal tubing and compact instrument layouts.

These fittings meet stringent requirements for small parts: outer diameter tolerance ±0.05 mm, wall thickness tolerance ±0.08 mm, bend ovality ≤5%, flared wall thickness accuracy ±0.05 mm, length tolerance ±0.2 mm, and angle tolerance ±0.5°. The CPK exceeds 1.33, ensuring high consistency for instrument and precision applications. Working pressure ranges from 0 to 25 MPa. Aluminum's density of 2.7 g/cm³ makes it 70% lighter than copper and 80% lighter than stainless steel of the same size-ideal for mobile or hand-held equipment.

Our fittings are ideal for precision hydraulic and pneumatic systems. Before shipping, each fitting undergoes ultrasonic cleaning, achieving ISO 16232 particle residue levels of 18/15. End seals can be miniature O-ring grooves (ISO 3601-1) or metal cone seals.

Use these fittings for pneumatic control tubes, analytical instrument liquid sample lines, medical device lubrication systems, micro hydraulic test benches, and drone fuel lines. Our factory continually improves processes and quality to deliver reliable, high-precision fittings. Small Pipe Fittings are a core product in our tube connector line, trusted by clients across precision instrumentation and mobile equipment industries.
