Y Junction Pipe Fitting

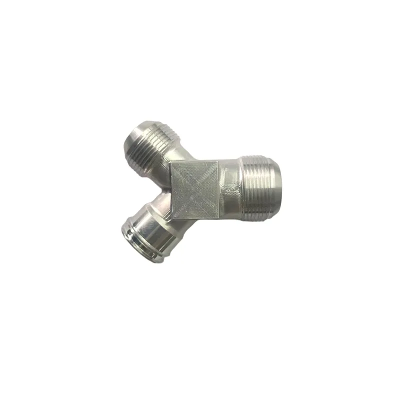

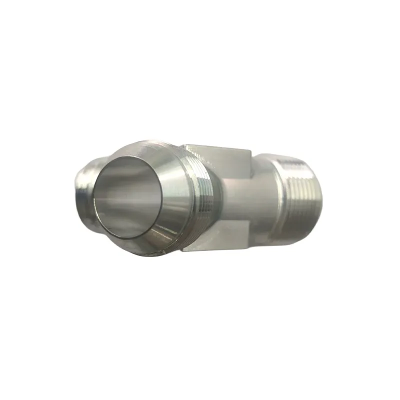

Our Y Junction Pipe Fitting is a Y-shaped branch designed to split fluid flow efficiently. Made from high-strength aluminum (6061-T6 or 7075-T5), the Y shape reduces flow resistance and vortex loss compared to traditional T fittings. Split angles are available at 45° or 60°, while T shapes are 90°. The Y design increases flow capacity by 20–30% and lowers pressure drop by 40% compared to a T fitting of the same size. Typical dimensions are 50×30×20 mm. Surface finish options include anodizing, powder coating, or natural finish, customized to your drawing.

Designed according to ISO 4144 standards, this fitting has a rated working pressure of 21 MPa (3,000 psi) and a burst pressure above 63 MPa, giving a 3× safety factor. Port inner diameter tolerance is H8 (ISO 286-2), and thread accuracy is 6H for UNF, UNEF, or G threads. The flow path surface roughness is Ra 1.6 μm. Anodizing thickness is 8–12 μm, with hard anodizing hardness above 500 HV. This ensures high-pressure reliability and long-term performance.

Ports accept UNF, UNEF, G, NPT, or NPTF threads, suitable for hydraulic fittings with 24° cone, 37° JIC flare, or flat O-ring face seals. Each batch undergoes SAE J514 or ISO 1179 testing. Threads are 100% inspected with go/no-go gauges, and flow paths are checked with a CMM. Leakage meets ISO 13857 low-leak standards, ensuring safety and environmental compliance for hydraulic systems.

Use this fitting for hydraulic system branch lines, engine lubrication branches, pneumatic system air distribution, and fuel system supply and return lines.

We handle every step of production: material procurement, precision machining, quality checks, packing, shipping, and tracking. Customer support includes delivery inspection assistance and follow-up calls. The Y junction fitting is a core product in our tube connector line, trusted by equipment makers and system integrators.
